GB_filter-database24 DesignFiX - Module Anchor Design - PRODUCT FILTER

gb_tab_products_zoom75

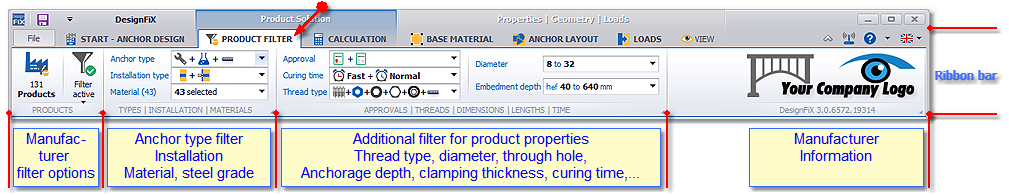

The tab GB_filter-database16 PRODUCT FILTER in the module Anchor Design contains four groups:



hmtoggle_arrow1PRODUCTS

On the tab Products all manufacturers are displayed that you have permanently activated in the settings.

gb_tab_products_filter01_zoom75

factoryFilter32 Products
With this function products you can temporarily filter individual manufacturers or specific product groups. These settings are not permanent and apply only to the current session in DesignFiX (see Permanent settings). This option helps you to search for suitable products.

gb_tab_products_filter02_zoom75

filter-ok32 Filter active

This function enables or disables the following filter options:

▪Anchor type, installation type, material

▪Approval, curing time, thread type

▪Diameter, embedment depth, fixing thickness

Alternatively the filter settings can be reset.

If the filter is inactive, all the products of the selected manufacturer are displayed. Enabling or disabling the filter is particularly useful if you want to check which products are affected by your filter settings.

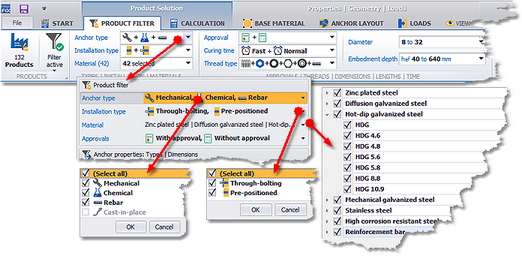

hmtoggle_arrow1ANCHOR TYPES | INSTALLATION | MATERIAL

This group contains main filter options for which DesignFiX searches:

▪Mechanical anchors

▪Threaded rods (chemical anchors)

▪Reinforcement bars (chemical products)

▪Cast-in-place systems

▪Through fixing (in-place installation)

▪Pre-positioned installation

The different types of materials are grouped in a tree structure.
You can filter or exclude specifically certain materials or even entire groups of materials.

gb_tab_products_filter03_zoom75

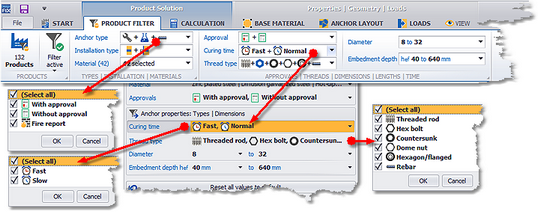

hmtoggle_arrow1APPROVAL | THREAD | DIMENSIONS | FIXING THICKNES | CURING TIME

This group offers more detailed filter settings such as approval, curing time, thread types, diameter (from/to), embedment depth (from/to) and fixing thickness. Please note that the product quantity can be significantly reduced by "unfavourable" settings. Furthermore we recommend to reset the filter settings after every detailed investigation (compare reset filter options).

gb_tab_products_filter04_zoom75
hmtoggle_arrow1DesignFiX Information

If you select a product on the left side of the user interface then the logo of the manufacturer will be displayed at the right edge of the ribbon bar that contains further information. If DesignFiX finds a LiveUpdate then this information will appear at this point by means of an additional link.

gb_manufacturer_hotline_zoom75



All products that result from the filter settings are displayed on the tab products.
