The group Start allows a quick and direct access to the anchor design:
Open project
You will be guided directly to the backstage-area for project management.
Open last project
Your last saved project is loaded automatically and you will be guided directly for the design into the 3D-Model.
LiveUpdate/program update
You will be guided directly to the backstage-areaarea for LiveUpdate.
This tile is amending its content if an update is present.
You never have to wait for the search of an update.
DesignFiX informs you while you are using the design software in the ribbon bar when an update is available.
The group DesignFiX Module offers a quick access to the individual design modules:
Anchor-Design
Anchor design for mechanical and chemical anchors in concrete.
Rail-Design
Rail design for the design of the fixing of hand rails with mechanical and chemical anchors in concrete. (This module is not yet available in this version).)
Displays a list of distinctive program enhancements/updates.
Touchscreen support
This function supports you in the use of touchscreen-enabled devices such as Microsoft Surface.
Coming from the start page all subsequent user interfaces contain a ribbon bar with module dependent content.
The ribbon bar is divided thematically (tab) and offers various functions (button) and selection mechanisms (ComboBox, dialogues, etc.). The individual functions are grouped together and associated categories are highlighted in colors. When a function is temporarily not visible or is shown to be inactive, this function is not available or not suitable for your current design process. This behavior facilitates the first step and the handling of DesignFiX and protects you from misuse.

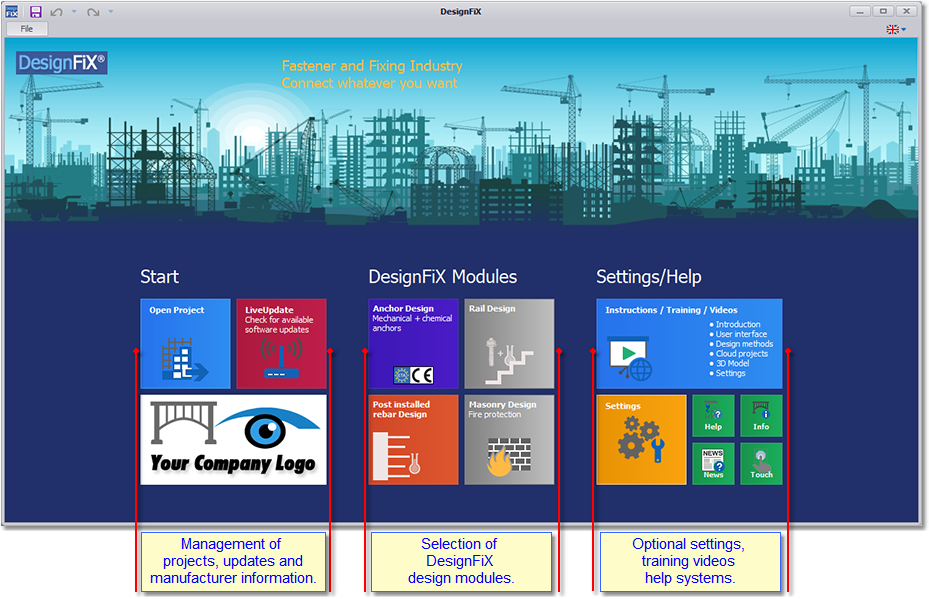

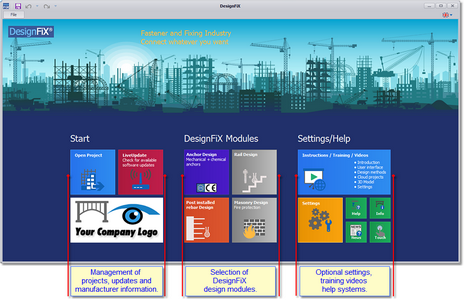

DesignFiX - Home/Startpage
