GB_print24 DesignFiX - Module Anchor Design - PRINTPREVIEW

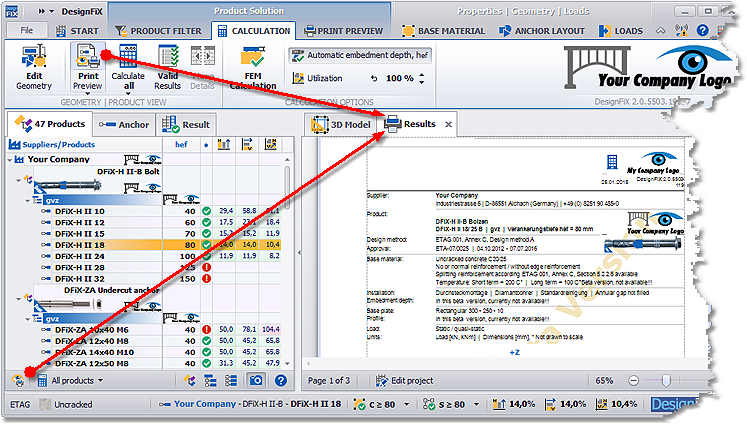

DesignFiX offers two functions to display the print preview:

•In the ribbon bar on the tab CALCULATION

•In the status bar of the product selection.

gb_tab_printpreview2_zoom50

Note:

The print preview can be displayed only if the selected product has a valid design result.

gb_tab_printpreview_zoom75

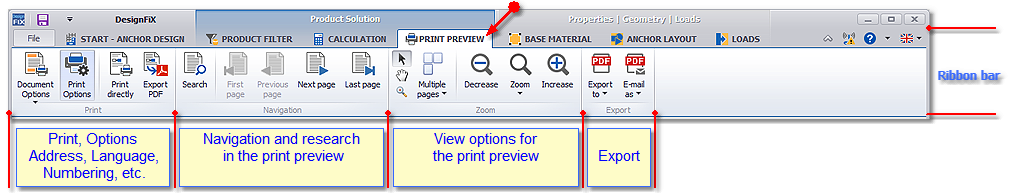

The tab GB_print16 PRINT PREVIEW in the module Anchor Design contains five groups:



hmtoggle_arrow1Print

GB_Tab_PrintPreview3

gb_tab_resultprintpreviewopt_zoom50

Document options
After the print preview of DesignFiX has already been created, you can subsequently select here optional document settings. E.g.: Date, page number, language, description, etc. These options are identical to that of the lower part of the print preview button on the tab CALCULATION.

print-gear32

Print options

This function displays the standard dialog box for the settings of your printout.

PrintAnchor32

Print directly
The print preview is transferred directly to the printer.

ExportResult_pdf32

Export PDF

A PDF file is generated from the print preview.
hmtoggle_arrow1Navigation

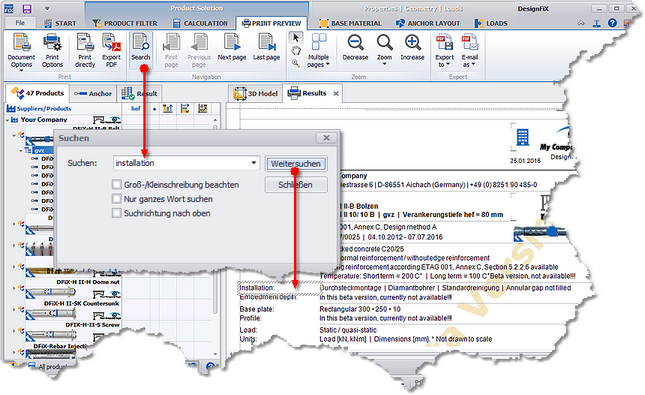

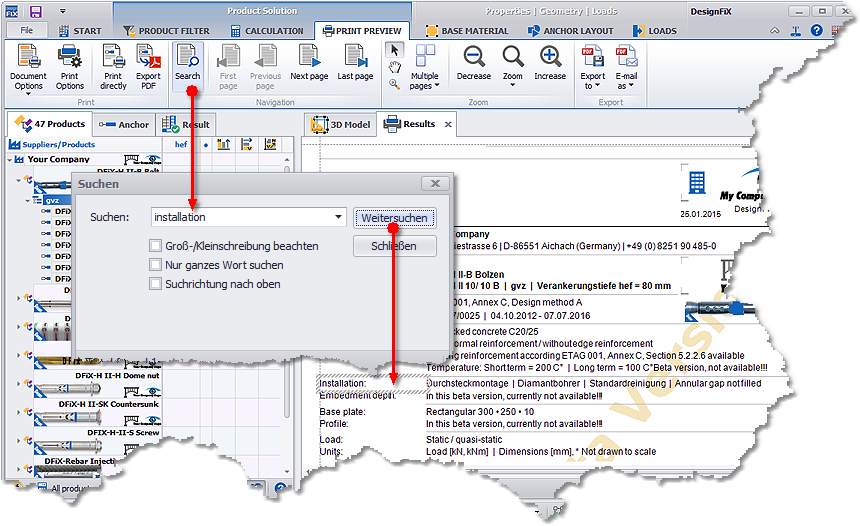

This group offers functions to navigate within the print preview. A special feature is the search function:
This function allows a very comfortable search for text or numbers - before a PDF was created. The text passages found are highlighted by a frame in the print preview.

gb_tab_printpreviewsearch_zoom75
hmtoggle_arrow1Zoom

In this group, general functions are included, with which you can customize the print preview to your monitor. Depending on the size of the user interface several pages of the print preview can be displayed simultaneously.
hmtoggle_arrow1Export

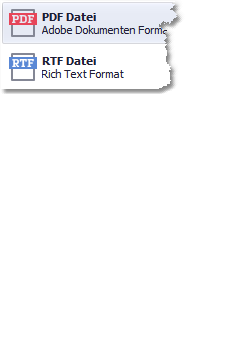

With the export function you can export the print preview in the following formats:

gb_tab_printexport_zoom75

Note:
Depending on the content of the print preview, the structure of the data is not necessarily completely identical for every export format. This is in the nature of the used file format. The export function is primarily intended for the re-use of text and images in different file formats. E.g., a good result is obtained in the RTF- or HTML-format. These formats can be easily used in Microsoft Word.



The function construction_progress-edit16Edit project in the status bar of the print preview guides you to the program area where you may edit information such as name, company, sender, recipient, etc.
This function is identical to the equivalent function on the tab START.



Video Tutorial



Online version: German | English
