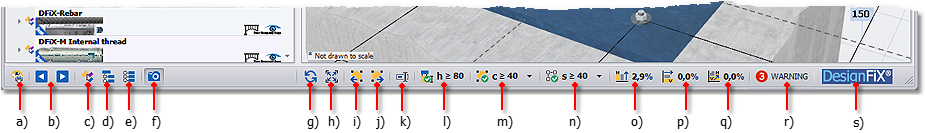

a)Displays print preview

b)Product navigation

c)Show/hide level of product families

d)Show/hide level of materials

e)Show/hide level of products

f)Show/hide product images

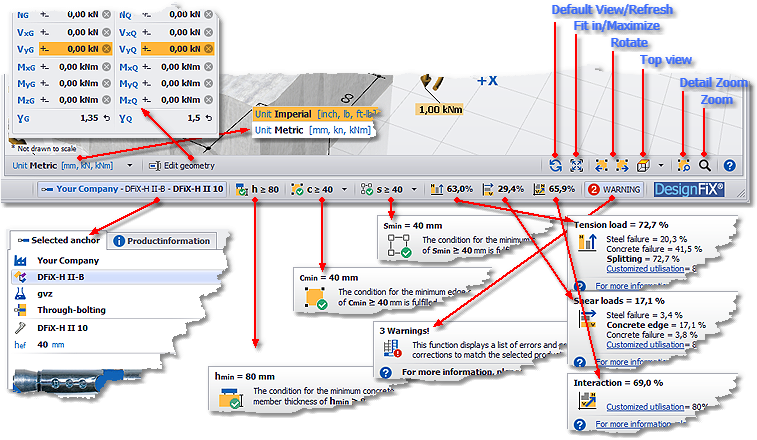

g)Standard view - the 3D-Model will be repainted and fitted into the window

h)Fitting - the 3D-Model fits into the current window

i)Rotate - the 3D-Model is rotated by 45° clockwise

j)Rotate - the 3D-Model is rotated by 45° counter-clockwise

k)Shows/hides the window for tabular load and geometry input

l)Status and conditions for the minimum thickness of concrete member - this function guides you to the tabular input

m)State and condition for the minimum edge distance - this function offers correction suggestions

n)State and condition for the minimum axial spacing - this function offers correction suggestions

o)Utilization of the tension capacity - this function guides you to the result page and displays error messages

p)Utilization of the shear capacity - this function guides you to the result page and displays error messages

q)Utilization of the interaction capacity - this function guides you to the result page and displays error messages

r)Indicates if necessary the number of detected errors - this function guides you to the overview of error messages

s)DesignFiX Logo - this function guides you to the homepage www.designfix.de

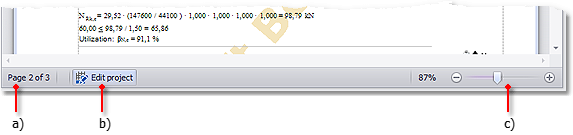

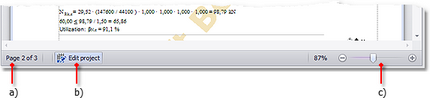

a)Page number - this function selects a specific page of the print preview

b)Edit project data such as address, project, etc.

c)Zoom - the print preview is enlarged or reduced
