1.) Slab to slab on support / beam to beam on support:
Connection of a plate or a beam to an existing supported component by overlapping the reinforcement (reinforcement lap).
2.) Slab to slab / beam to beam:
Connection of a plate or a beam to an existing component by overlapping the reinforcement (reinforcement lap).
3.) Wall to foundation / Column to foundation (lap):
Connection of a wall or column to an existing foundation by overlapping the reinforcement (reinforcement lap).
4.) Wall to foundation / Column to foundation (compression):
Connection of a wall or column under compression to an existing foundation (only compression force N permitted).
5.) Wall extension / column extension:
Connection of a wall or a column to an existing component by overlapping the reinforcement (reinforcement lap).
6.) End anchoring of wall or beam (simply supported):
End anchoring of a simply supported slab or a beam (only shear force V permitted).
7.) Envelop of tensile force:
Anchoring of reinforcement to cover the envelop of the tensile force in a component (plate or beam) subjected to bending.
If you select a product on the left side of the user interface then the logo of the manufacturer will be displayed at the right edge of the ribbon bar that contains further information. If DesignFiX finds a LiveUpdate then this information will appear at this point by means of an additional link.

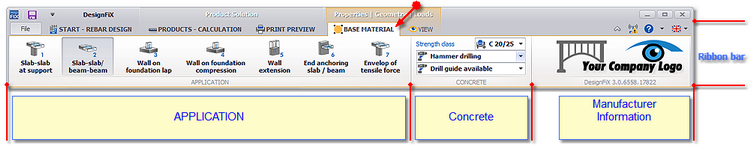

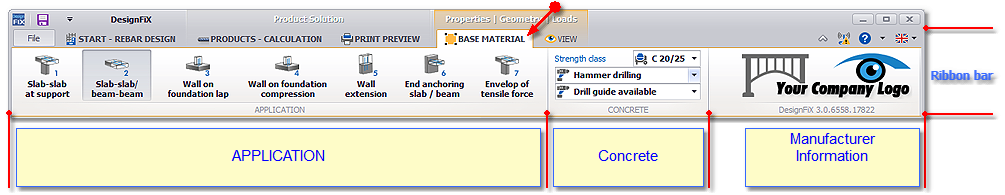

DesignFiX - Module post-installed rebar connections - BASE MATERIAL
BASE MATERIAL in the module Rebar Design contains three groups:
