DesignFiX - Module post-installed rebar connections - Statusbar
Contents
The status bar in DesignFiX provides you with important information about the result of the calculation and always refers to the currently selected product. Depending on the content of the window, the status bar can be multiline.
The following information areas are included in DesignFiX:

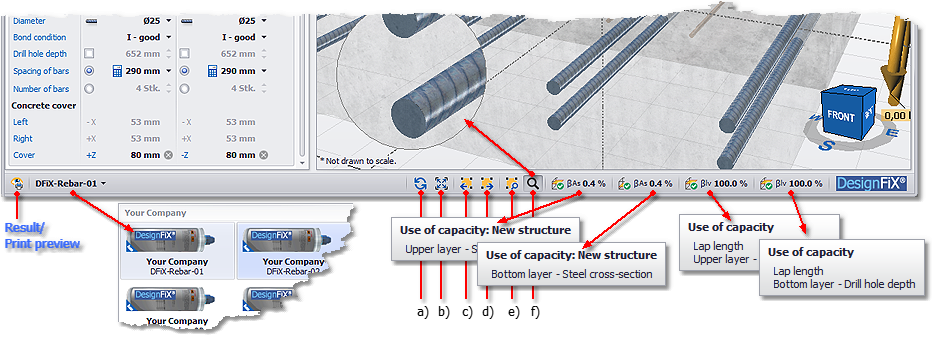

a)Standard view - the 3D-Model will be repainted and fitted into the window. b)Fitting - the 3D-Model fits into the current window. c)Rotate - the 3D-Model is rotated by 45° clockwise d)Rotate - the 3D-Model is rotated by 45° counter-clockwise. e)Detail Zoom - defines a rectangular zoom area. f)Magnifier - defines a circular area as an interactive magnifying glass. |
