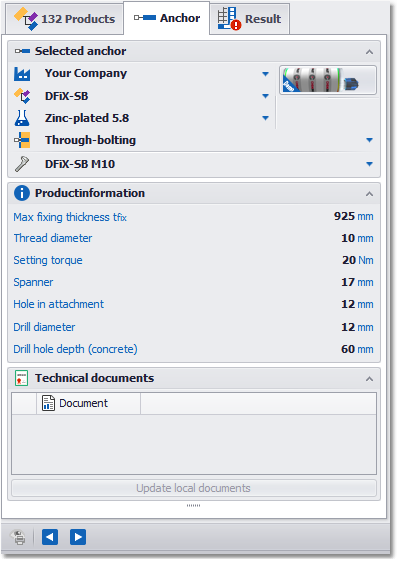

The tab Anchor contains important information about the selected anchor. The upper section shows manufacturer, anchor family, version (corrosion protection), installation method and anchor designation. This information can be changed by clicking.
In the area below, the most important product information of the selected anchor is given. If no number is displayed for chemical anchors in the field fixing thickness tfix, this means that the manufacturer has no threaded rods in the product range for the selected diameter and the selected version. In this case, the user has to look for the threaded rod himself. The required length is given as a function of the anchoring depth, the thickness of the anchor plate and the screw and nut height in the printout.
The hint "(concrete)" at the drill hole depth indicates that the value - as in the ETAs - is measured from the concrete surface. For through fixings, the specified drill hole depth should be increased by the thickness of the anchor plate.
The lower part of the tab lists the Technical Documents that the manufacturer provides for the selected anchor. To download the corresponding document, please click on the respective link.
